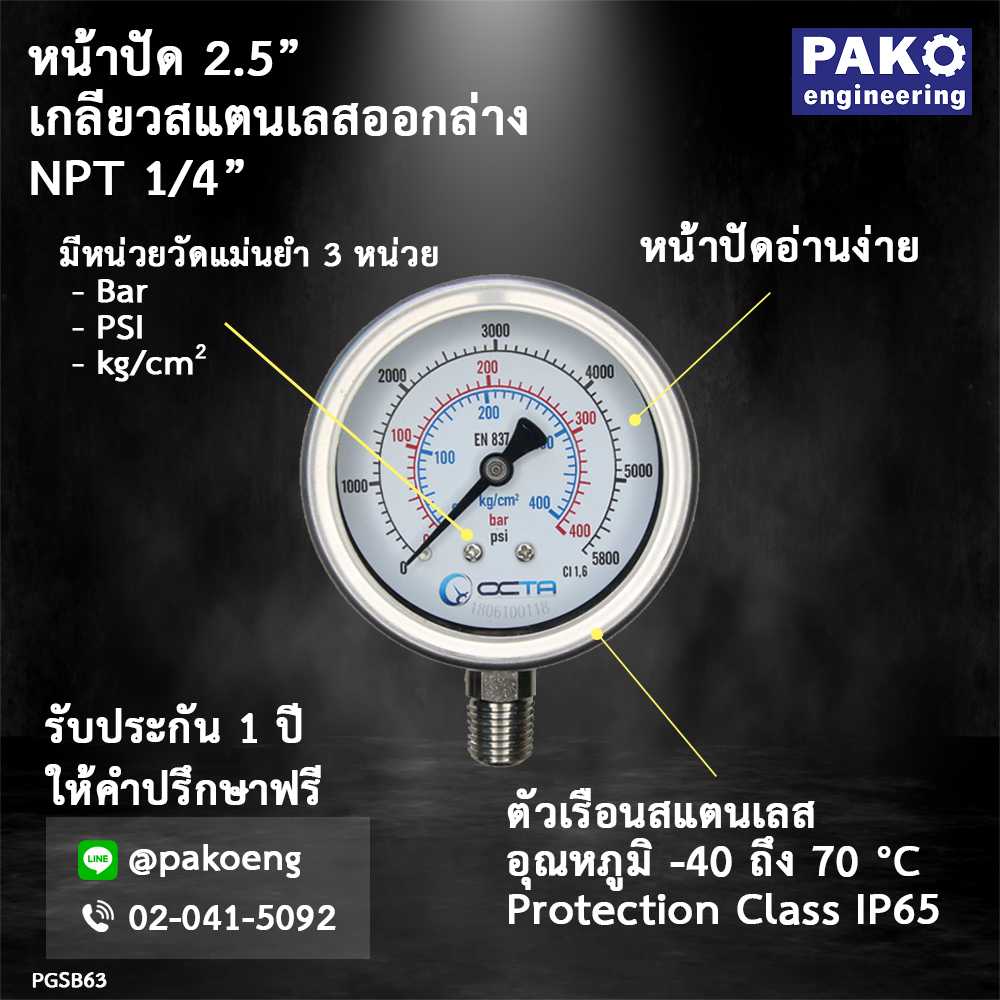

Pressure gauge (เพรสเชอร์เกจออกล่าง) ขนาดหน้าปัด 2.5″

เหมาะสำหรับใช้งานทั่วไป มีขนาดเล็กกะทัดรัด สเกลอ่านง่าย มีให้เลือกหลากหลายสเกล

Applications

∎ Measuring pressure of gas or liquid which is non-corrosive,explosive and no crystallization , precipitation. The most notable character is they can test pressure properly even installed on violent vibration machine or equipment.

∎ Applicable to working environment with intense vibration, machinery and equipment operational for a long time

∎ Scale range available , three scales unit bar / psi / kg/cm²

-1 to 9 Bar

-1 to 5 Bar

-1 to 3 Bar

-1 to 0 Bar

0-1 Bar

0-4 Bar

0-6 Bar

0-10 Bar

0-16 Bar

0-25 Bar

0-40 Bar

0-60 Bar

0-100 Bar

0-160 Bar

0-250 Bar

0-400 Bar

0-600 Bar

Nominal size : 63mm. (2.5”)

Accuracy class : 63mm. (2.5”)

Operating temperature

Ambient : -40 to 70 deg C

Medium : + 70 deg C

Material

Case : Stainless steel

Window : Toughened glass

Dial plate : Aluminum , pointer stop

Pointer : Black aluminum

Bourdon tube : Copper alloy

100 bar : C shape , 100 bar : Helical type

Connection : Stainless

Movement : Stainless

Connection : 63mm : 1/4″ NPT

Protection Class : IP 65

Options : Silicone oil filling , Glycerin , Adjustable pointer
