Description

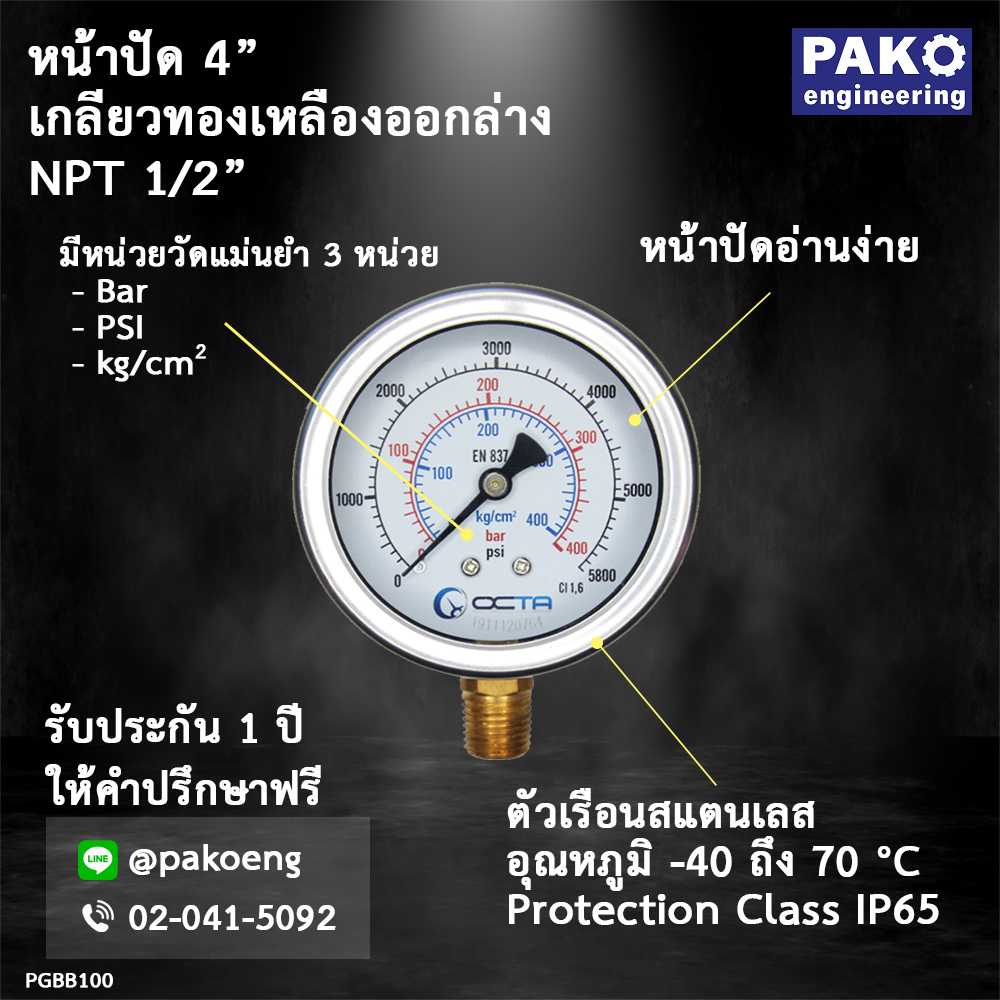

Pressure gauge (เพรสเชอร์เกจออกล่าง) ขนาดหน้าปัด 4″
เหมาะสำหรับใช้งานทั่วไป มีขนาดเล็กกะทัดรัด สเกลอ่านง่าย มีให้เลือกหลากหลายสเกล
Applications
∎ Measuring pressure of gas or liquid which is non-corrosive,explosive and no crystallization , precipitation. The most notable character is they can test pressure properly even installed on violent vibration machine or equipment.
∎ Applicable to working environment with intense vibration, machinery and equipment operational for a long time
∎ Scale range available , three scales unit bar / psi / kg/cm²
-1 to 9 Bar
-1 to 5 Bar
-1 to 3 Bar
-1 to 0 Bar
0-1 Bar
0-4 Bar
0-6 Bar
0-10 Bar
0-16 Bar
0-25 Bar
0-40 Bar
0-60 Bar
0-100 Bar
0-160 Bar
0-250 Bar
0-400 Bar
0-600 Bar
Nominal size : 100mm. (4”)
Accuracy class : 100mm. (4”) : 1.6
Operating temperature :
Ambient : -40 to 70 deg C
Medium : + 70 deg C
Material :
Case : Stainless steel
Window : Toughened glass
Dial plate : Aluminum , pointer stop
Pointer : Black aluminum
Bourdon tube : Copper alloy
<100 bar : C shape , >100 bar : Helical type
Connection : Brass
Movement : Brass
Connection : 100mm : 1/2″ NPT
Protection Class : IP 65
Options : Silicone oil filling , Glycerin , Adjustable
#pressuregauge #เกจวัดแรงดัน #OCTA #เพรชเชอร์เกจ
#เกจวัด
