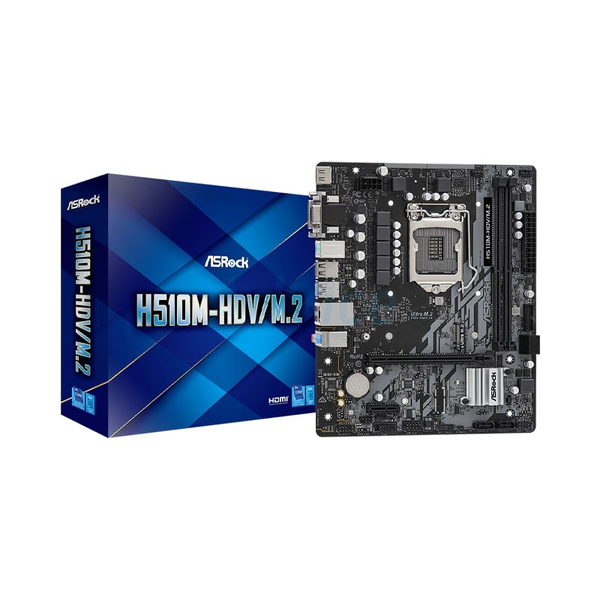

MAINBOARD (1200) ASROCK H510M HDV/M.2 DDR4
฿2,848
Description
Brand ASROCK
Model
H510M-HDV/M.2
CPU Support
Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200)
5 Power Phase design
Supports Intel Turbo Boost Max 3.0 Technology
Socket
1200
Chipset
Intel H510
Memory Support
Dual Channel DDR4 Memory Technology
2 x DDR4 DIMM Slots
Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
Max. capacity of system memory: 64GB**
Supports Intel Extreme Memory Profile (XMP) 2.0
*11th Gen Intel Core (i9/i7/i5) support DDR4 up to 3200; Core (i3), Pentium and Celeron support DDR4 up to 2666.
10th Gen Intel Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666.
**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
Memory Type
DDR4
Memory Bus
3200 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
Memory Slot
2 Slots
Graphics
11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics
Graphics, Media Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
Display Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, UHD/HDR Blu-ray Disc
Three graphics output options: D-Sub, DVI-D and HDMI**
Supports Triple Monitor
Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)
Supports HDCP 2.3 with DVI-D and HDMI 2.0 Ports
*Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
**Supports up to 2 displays simultaneously
Multi Graphic Support
None
Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Supports Surge Protection
Expansion Slots
11th Gen Intel Core Processors
- 1 x PCI Express 4.0 x16 Slot*
10th Gen Intel Core Processors
- 1 x PCI Express 3.0 x16 Slot*
- 1 x PCI Express 3.0 x1 Slot
*Supports NVMe SSD as boot disks
Storage
4 x SATA3 6.0 Gb/s Connectors, support Intel Rapid Storage Technology 18, NCQ, AHCI and Hot Plug
1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
** Supports NVMe SSD as boot disks
* Supports ASRock U.2 Kit
USB
N/A
Internal I/O Connectors
1 x COM Port Header
1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)
* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
1 x Chassis Fan Connector (4-pin)
* The Chassis Fan supports the Chassis fan of maximum 1A (12W) fan power.
1 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
* The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
* CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Back Panel Connectors
1 x PS/2 Keyboard Port
1 x PS/2 Mouse Port
1 x D-Sub Port
1 x DVI-D Port
1 x HDMI Port
4 x USB 2.0 Ports (Supports ESD Protection)
2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
LAN
Gigabit LAN 10/100/1000 Mb/s
Giga PHY Intel I219V
Supports Wake-On-LAN
Supports Lightning/ESD Protection
Supports Energy Efficient Ethernet 802.3az
Supports PXE
Wireless Data Network
None
Form Factor
Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm
Solid Capacitor design
H/W Monitoring
Fan Tachometer: CPU, Chassis, Chassis/Water Pump Fans
Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis/Water Pump Fans
Fan Multi-Speed Control: CPU, Chassis, Chassis/Water Pump Fans
CASE OPEN detection
Voltage monitoring: CPU Vcore, +12V, +5V, +3.3V
BIOS
128Mb AMI UEFI Legal BIOS with multilingual GUI support
ACPI 6.0 Compliant wake up events
SMBIOS 2.7 Support
CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VCCST, VCCIN AUX Voltage Multi-adjustment
Special Features
ASRock Super Alloy
- Premium 50A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
ASRock Ultra M.2 (PCIe Gen3 x4 SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update APP Shop
Software Features
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock XFast LAN
U
