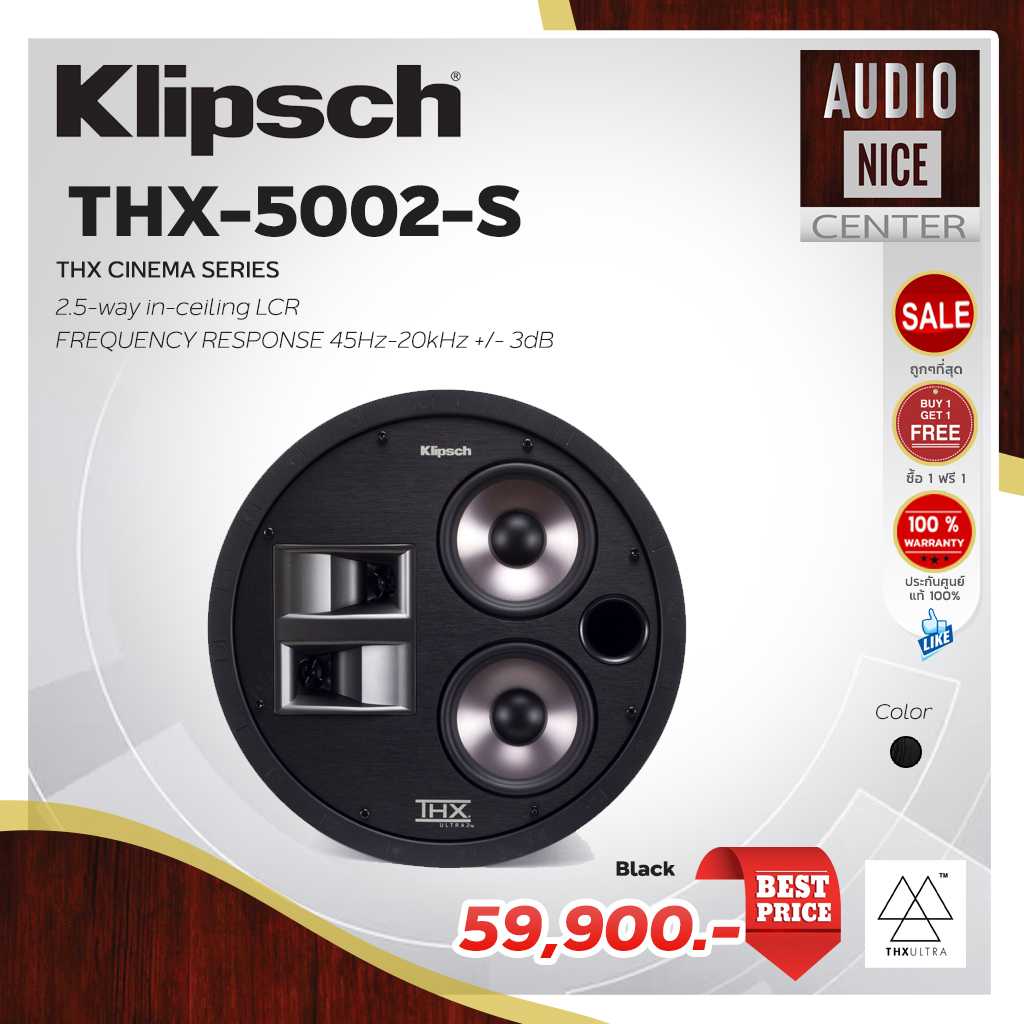

THX-5002-S IN-CEILING SPEAKER

So stunningly detailed and immersive, the THX-5002-S in-ceiling surround

speaker brings a whole new dimension of reality to home theater. Perhaps

that's why it's the first of its kind to receive the highly respected Ultra2

certification from THX.

Features:

Dual 1” Titanium tweeters

Dual 5.25” Cerametallic Woofers

THX® Ultra2 Certified

Cinema Quality Sound

Maximum Installation Reliability

Unlimited Flexibility

Edge-to-Edge Grille

SPECIFICATIONS

System Type

2-way In-ceiling

Frequency Response

45 Hz - 20 kHz +/- 3dB

Power Handling

100W/400W

Sensitivity

93dB

Impedance

8 Ohms

Crossover Frequency

2500Hz

High Frequency Driver

Two 1” Titanium tweeters in vertically stacked tractrix horns

Low Frequency Driver

Two 5.25” Cerametallic Woofers

Enclosure Type

Bass Reflex via 1.6” diameter port - Front Flush with Ceiling

Hole dimensions (mm/in, HxWxD)

13.25” (33.7cm)

Dimensions

14.89” (378.21mm)

Mounting Depth

9.23” (234.44mm)

Weight

11 lbs. (5.0kg)

Finish

White with Brushed Aluminum Facia

Installation Kit

IK-502-C

Cutout Diameter

13.39” (349.11mm)

THX-5002-S In-Ceiling Speaker Spec Sheet

THX® ULTRA2 CERTIFIED

Works well with multi-channel movie and music presentations playing up to

reference levels in rooms of 3,000 cubic feet or larger.

CINEMA QUALITY SOUND

Employs dual 5.25-inch Cerametallic woofers that operate in an enclosed

tuned-port chamber. These exclusive woofer cones offer superb damping

characteristics that will not flex or resonate at frequencies within the

drivers’ operating ranges, resulting in consistent bass response regardless

of the installation or ceiling air space. A 1-inch titanium tweeter in a

patented 60-90-110-degree horn that features Variable Coverage Technology, or

VCT, allows the speaker to create precise imaging and localized sound

fields.

WIDE DISPERSION SURROUND TECHNOLOGY (WDST)

In order to create enveloping sound fields and precise localization of

individual effects, this speaker also utilizes Klipsch’s Wide Dispersion

Surround TechnologyTM. Also referred to as WDST, this no-compromise approach gives

much more placement flexibility than conventional designs.

UNLIMITED FLEXIBILITY

Timbre matched to all of our THX-certified products, so you can mix and

match to create an unbeatable, discreet stereo or home theater system that’s

just right for you.

EDGE-TO-EDGE GRILL

Covering the whole of the speaker makes painting the product both simpler

and quicker. Premium Neodynium magnets make it easy to install and remove and

ensure a secure and flush fit without any moving parts. The flat grill allows

better harmonization with today’s modern interior designs and disappear into

the background, enabling sound to take center stage.
