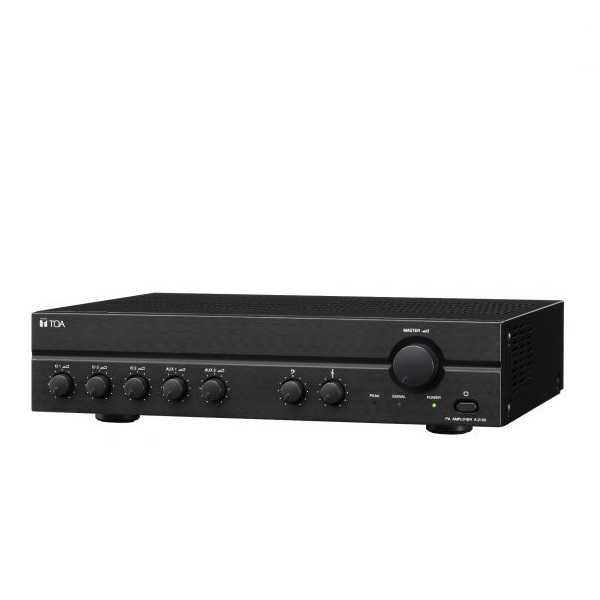

TOA A‐2120 H เครื่องขยายเสียงระบบ ประกาศ 120 วัตต์

he A-2120 is a high cost-performance mixer power amplifier suited for broadcasting paging or background music in schools, offices, shops, factories, mosques, churches, and large rooms.

Specification

Power Source

220 - 240 V AC, or 24 - 30 V DC

Rated Output

120 W

Power Consumption

124 W (EN60065), 260 W (AC operation at rated output),

8 A (DC operation at rated output)

Frequency Response

50 - 20,000 Hz (±3 dB)

Distortion

Under 1% at 1 kHz, 1/3 rated power

Input

MIC 1 - 3: -60 dB*, 600 Ω, balanced, phone jack

AUX 1,2: -20 dB*, 10 kΩ, unbalanced, RCA pin jack

Output

Speaker out: Balanced (floating)

High impedance: 83 Ω (100 V), 42 Ω (70 V)

Low impedance: 4 Ω (22 V)

Rec out: 0 dB*, 600 Ω, unbalanced, RCA pin jack

Phantom Power

DC +21 V (MIC 1)

S/N Ratio

Over 60 dB

Tone Control

Bass: ±10 dB at 100 Hz

Treble: ±10 dB at 10 kHz

Muting

MIC 1: Mutes other input signals by 0 - 30 dB attenuation

Indicator

Power, signal, peak

Finish

Panel: ABS resin, black

Case: Steel plate, black

Dimensions

420 (W) × 100.9 (H) × 360.3 (D) mm (16.54" × 3.97" × 14.19")

Weight

10.8 kg (23.81 lb)
