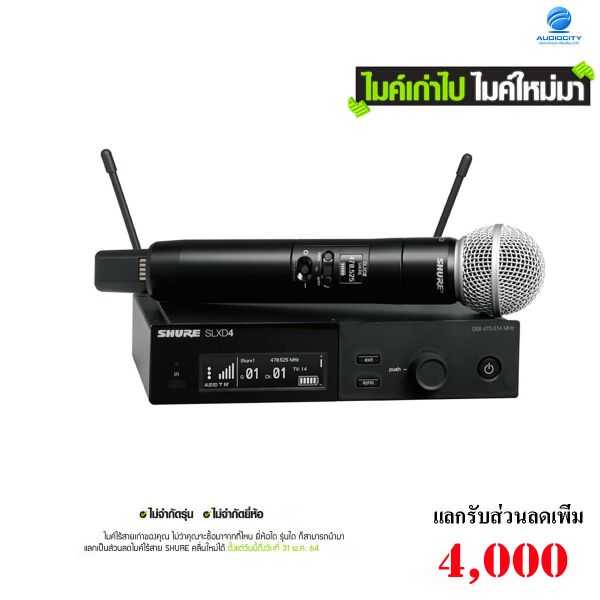

SHURE SLXD24A/SM58-M55 ไมค์ลอยมือถือเดี่ยว ไมโครโฟนไร้สายแบบไมค์เดียว คลื่นความถี่ 694-703 MHz และ 748-758 MHz

Features:

• Transparent 24-bit digital audio
• Extended 20 Hz to 20 kHz frequency range (microphone dependent)
• 120 dB dynamic range
• Digital predictive switching diversity
• 44 MHz tuning bandwidth (region dependent)
• 32 available channels per frequency band (region dependent)
• Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
• Easy pairing of transmitters and receivers over scan and IR sync
• Rugged metal construction

Specifications

SLXD4 DIGITAL WIRELESS RECEIVER

• Dimensions (H × W × D) 1.65 × 7.76 × 5.98 in (42 × 197 × 152 mm)
• Weight 1.8 lb (816 g) without antennas
• Housing Galvanized Steel
• Power Requirements 15 VDC @ 600 mA Supplied by external power supply (tip positive)
•


RF INPUT

• Spurious Rejection >75 dB Typical
• Connector Type BNC
• Impedance 50 Ω
•


AUDIO OUTPUT

• Gain Adjustment Range
• –18 to +42 dB in 1 dB steps

Configuration

• 1/4″ (6.35 mm): Balanced (Tip=audio +, Ring=audio –, Sleeve=ground)
• XLR: Balanced (1=ground, 2=audio +, 3=audio –)
• Impedance
• 1/4″ (6.35 mm): 1.3 kΩ (670 Ω Unbalanced)
• XLR (line): 400 Ω (200 Ω Unbalanced)
• XLR (mic): 150 Ω

Full Scale Output

• 1/4″ (6.35 mm): +15 dBV differentially (+9 dBV single)
