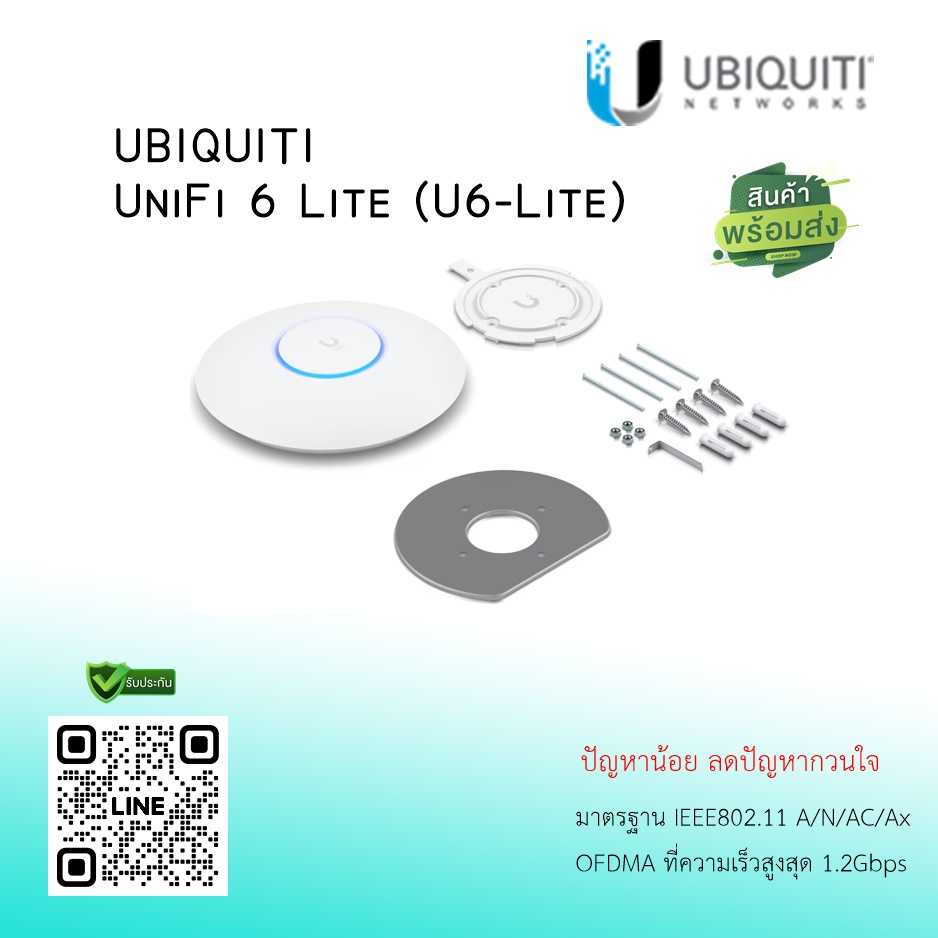

UBiQUiTi UniFi 6 Lite (U6-Lite) ราคาไม่รวม POE

รับประกันสินค้า 1 ปี

ย่าน 5GHz มาตรฐาน IEEE802.11 A/N/AC/Ax 2x2 MU-MIMO (Wi-Fi6) and OFDMA ที่ความเร็วสูงสุด 1.2Gbps

ย่าน 2.4GHz มาตรฐาน IEEE802.11 B/G/N 2x2 MIMO ที่ความเร็วสูงสุด 300Mbps

Technical Specifications

Mechanical

Dimensions Ø220 x 48 mm (Ø8.66 x 1.89")

Weight Without mount: 800 g (1.76 lb)

With mount: 930 g (2.05 lb)

Enclosure material Polycarbonate

Mount material Stainless steel (SUS304)

Weatherproofing IP54

Hardware

Networking interface (1) GbE RJ45 port

Management interface Ethernet

Bluetooth

Power method PoE+, passive PoE (48V)

Power supply UniFi PoE switch

48V, 0.5A PoE adapter (Not included)

Supported voltage range 44—57V DC

Max. power consumption 18.5W

Max. TX power

2.4 GHz

5 GHz

26 dBm

26 dBm

MIMO

2.4 GHz

5 GHz

4 x 4

4 x 4

Throughput rate

2.4 GHz

5 GHz

600 Mbps

2400 Mbps

Antenna gain

2.4 GHz

5 GHz

4 dBi

5.5 dBi

LEDs White/blue

Button Factory reset

Mounting Wall/ceiling (Included)

Operating temperature -30 to 60° C (-22 to 140° F)

Operating humidity 5 to 95% noncondensing

Certifications CE, FCC, IC

Software

WiFi standards 802.11a/b/g

WiFi 4/WiFi 5/WiFi 6

Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3

BSSID 8 per radio

VLAN 802.1Q

Advanced QoS Per-user rate limiting

Guest traffic isolation Supported

Concurrent clients 350+

Supported Data Rates

802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b 1, 2, 5.5, 11 Mbps

802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n (WiFi 4) 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)

802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)

802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)

Application Requirements

UniFi Network Version 6.0.34 and later
