Technical features

Diamond tweeter

Continuum™ cone bass mid

Anti-resonance plug

Flowport™

Optimized Matrix

Solid body tweeter

Tweeter-on-Top

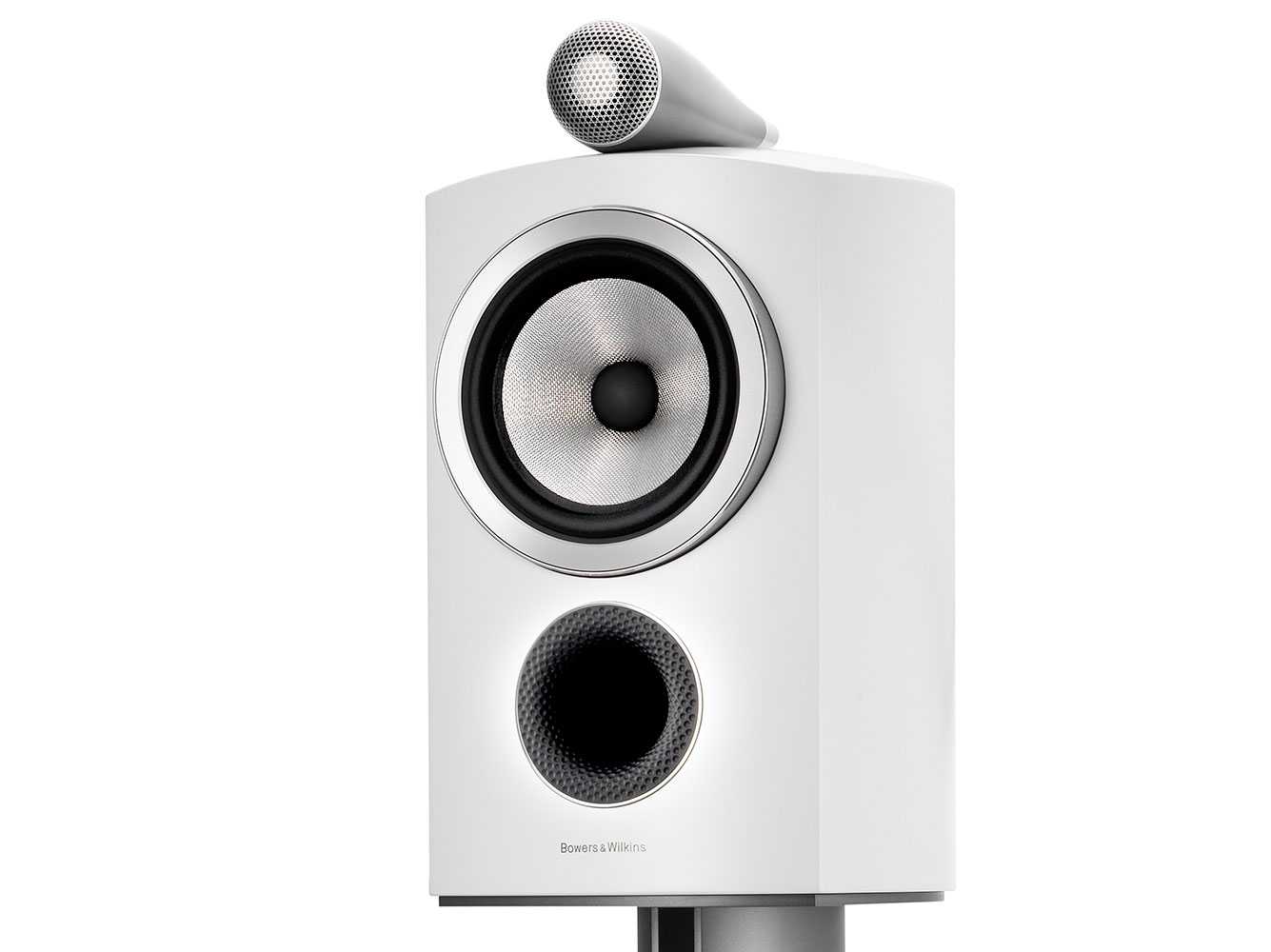

Description

2-way vented-box system

Drive units

1x ø25mm (1 in) Diamond dome high-frequency

1x ø165mm (6.5 in) Continuum™ cone bass midrange

Frequency range

34Hz to 35kHz

Frequency response (+/-3dB from reference axis)

42Hz to 28kHz

Sensitivity (1m on axis at 2.83Vrms)

88dB

Harmonic distortion

2nd and 3rd harmonics (90dB, 1m on axis)

<1 % 70Hz - 20kHz

<0.6% 120Hz - 20kHz

Nominal impedance (min)

8Ω (minimum 4.6Ω)

Recommended amplifier power

50W - 120W into 8Ω on unclipped programme

Max. recommended cable impedance

0.1Ω

Dimensions

Height: 424mm

Width: 238mm

Depth: 345mm

Net weight

12.6kg (28lb)
