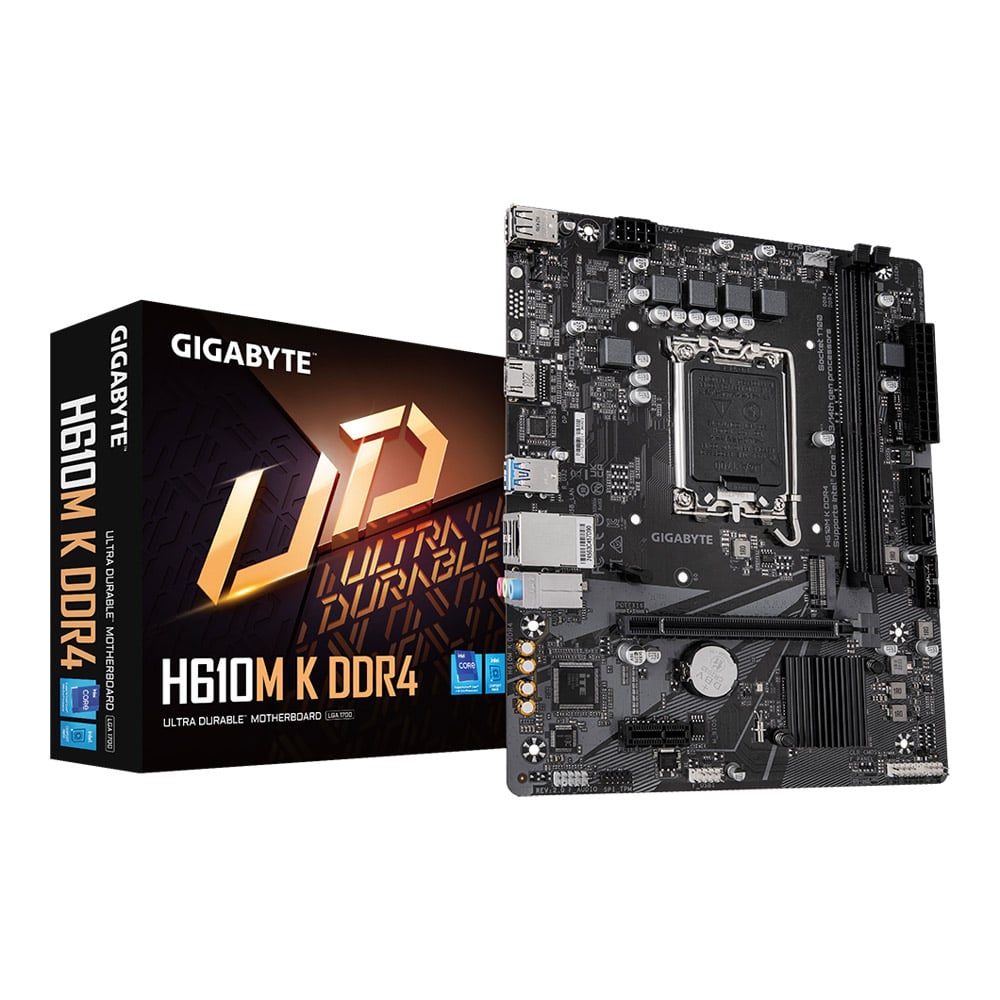

รายละเอียดสินค้าโดยย่อ • Socket LGA1700 for Intel 14th, 13th & 12th Gen Processors • Intel H610 • DDR4, 2 x DIMM • 1 x HDMI • 1 x M.2 connector • 2 x SATA 6Gb/s connectors • 1 x USB 3.2 Gen 1 Type-A header (front) • 2 x USB 3.2 Gen 1 Type-A (rear) • 4 x USB 2.0 Type-A (rear) • 1GbE LANModel Brand Gigabyte Model H610M K DDR4 (rev. 2.0) CPU Socket 1700 (12th Gen - Alder Lake) , 1700 (13th Gen - Raptor Lake) , 1700 (14th Gen - Raptor Lake Refresh) Wattage 150W Chipset Intel H610 Series Celeron , Core i3 , Core i5 , Core i7 , Core i9 , Pentium Memory Slot 2 Memory Type DDR4 Max. Capacity 64 GB Speed 2133 , 2400 , 2666 , 2666 (OC) , 2933 , 2933 (OC) , 3000 , 3000 (OC) , 3200 , 3200 (OC) Graphic & Audio Graphic Requires a CPU with Integrated Graphics. — Integrated Graphics Processor-Intel HD Graphics support: • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. — (Graphics specifications may vary depending on CPU support.) Audio Realtek Audio CODEC • High Definition Audio • 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Storage SATA 2 - Port SATA 3 2 Port RAID No M.2 1 x M.2 Connector — Chipset: • 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) Port Expansion Slots Details CPU: • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 — Chipset: • 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 Slot 1 x PCIe 3.0 x1 Slot , 1 x PCIe 4.0 x16 Slot Network LAN Realtek 1Gb Ethernet LAN Speed 10/100/1000 Mbps Wireless No Back Panel I/O Ports USB 2.0 4 Port USB 3.0 - Port USB 3.1 - Port Serial - Port USB 3.2 2 x USB 3.2 Gen 1Type-A Port D-Sub (VGA) - Port DVI - Port HDMI 1 Port DisplayPort - Port Audio 3 Port PS/2 No Additional No LAN 1 Port Form Factor Form Factor Micro-ATX Power Connector 24 + 8 Pin Dimension 22.6 x 18.5 cm Warranty การรับประกัน 3 Years
