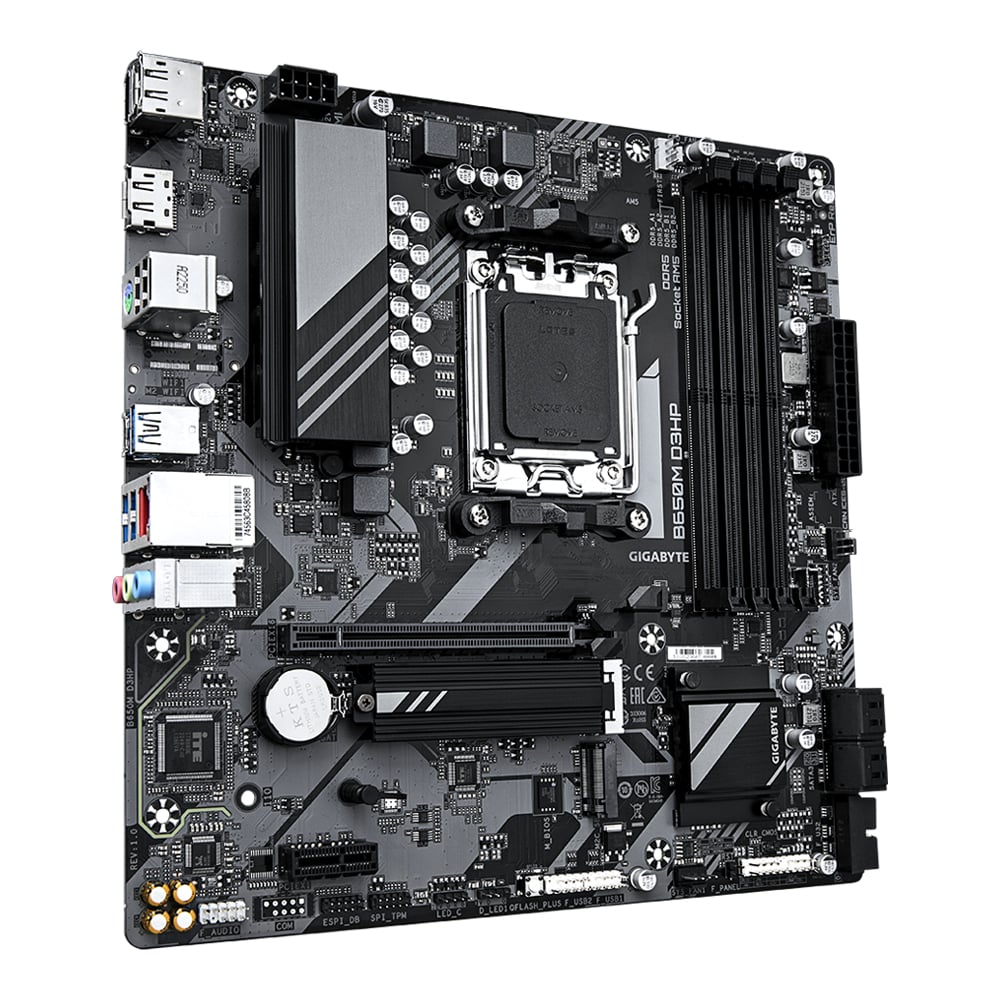

รายละเอียดสินค้าโดยย่อ • Socket AM5 for AMD Ryzen 7000 Series Processors • AMD B650 • DDR5, 4 x DIMM • 2 x DP • 1 x HDMI • 2 x M.2 Connectors • 4 x SATA 6Gb/s connectors • 1 x USB 3.2 Gen 1 Type-C header (front) • 3 x USB 3.2 Gen 1 Type-A (rear) • 1 x PS/2 • 2.5GbE LANModel Brand Gigabyte Model B650M D3HP (rev. 1.0) CPU Socket AM5 (7000 Series - Raphael) Wattage 170W Chipset AMD B650 Series Ryzen 5 , Ryzen 7 , Ryzen 9 Memory Slot 4 Memory Type DDR5 Max. Capacity 192 GB Speed 4800 , 5200 , 5200 (OC) , 5600 (OC) , 6000 (OC) , 6200 (OC) , 6400 (OC) , 6600 (OC) , 6800 (OC) , 7000 (OC) , 7200 (OC) , 7600 (OC) Graphic & Audio Graphic Requires a CPU with Integrated Graphics. — Integrated Graphics Processor with AMD Radeon™ Graphics support • 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. — Support for up to triple-display at the same time (Graphics specifications may vary depending on CPU support.) Audio Realtek 2/4/5.1/7.1-channel Storage SATA 2 - Port SATA 3 4 Port RAID RAID 0, RAID 1, RAID 10 for SATA storage devices RAID 0, RAID 1, RAID 10 for PCIe / NVMe storage devices M.2 2 x M.2 Connectors — Integrated in the CPU: • 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: • 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB) Port Expansion Slots Details CPU: • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 — Chipset: • 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 Slot 1 x PCIe 3.0 x1 Slot , 1 x PCIe 4.0 x16 Slot Network LAN Realtek LAN Speed 100/1000/2500 Mbps Wireless No Back Panel I/O Ports USB 2.0 2 Port USB 3.0 - Port USB 3.1 - Port Serial - Port USB 3.2 1 x USB 3.2 Gen 1 Type-C 3 x USB 3.2 Gen 1 Type-A Port D-Sub (VGA) - Port DVI - Port HDMI 1 Port DisplayPort 2 Port Audio 3 Port PS/2 1 (Keyboard/Mouse combo) Port Additional No LAN 1 Port Form Factor Form Factor Micro-ATX Power Connector 24 + 8 Pin Dimension 24.4 x 24.4 cm Warranty การรับประกัน 3 Years
