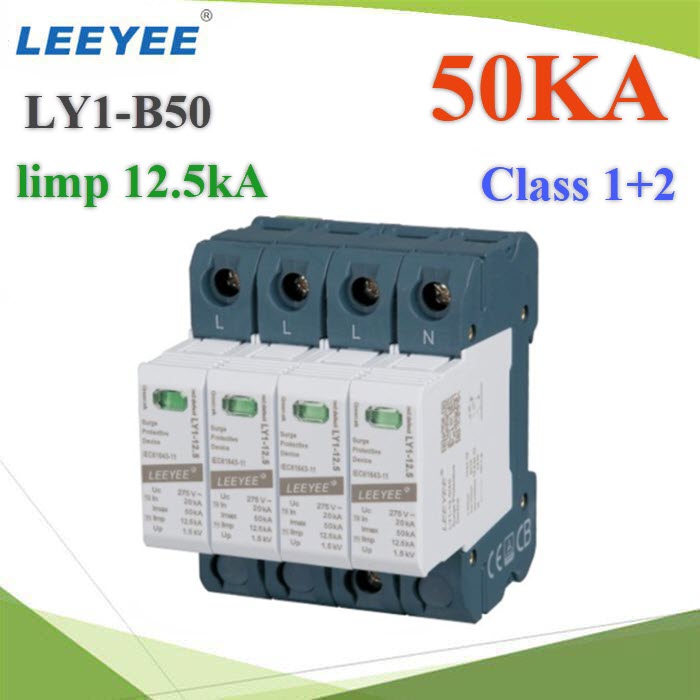

Surge AC LY1-B T1 T2 limp 12.5kA Uc 385V อุปกรณ์ป้องกันฟ้าผ่า ไฟกระชาก 3 เฟส 3P-N-PE
฿2,040
Description
AC-Surge-3P-T1-50KA
Surge AC LY1-B T1 T2 limp 12.5kA Uc 385V อุปกรณ์ป้องกันฟ้าผ่า ไฟกระชาก 3 เฟส 3P-N-PE
AC Surge 50KA 10/350 limp 12.5kA Uc 385V 3เฟส รุ่น LY1-B Class1 Class2 3P N PE จะช่วยปกป้องอุปกรณ์ไฟฟ้า เมือกระแสเกิน หรือไฟกระชาก ไม่ให้เสียหาย ปกป้องระบบไฟฟ้าสมบูรณ์แบบด้วย Protection mode L1 L2 L3 N-PE ติดตั้งใน 35 มม. ราง Dinrial ป้องกันไฟกระชาก(SPD) เหมาะสำหรับ TN-S, TN-CS, TT, ไอที ฯลฯ ระบบไฟของ AC 50 60Hz, 3เฟส ได้รับการออกแบบตาม IEC61463-11.
ข้อมูลสินค้า เบื้องต้น
- Type : LY1-B
- Brand : LEEYEE
- Max discharge current ( 8/20 us) : 50kA
- limp current (10/350 us) : 12.5kA
- Voltage protection level Up : 1.5kV
- Protection mode : 3P , N-PE
- Maximum continuous operating voltage Uc : 385V AC
- Nominal voltage Un : 380V AC
- IEC test classification : T1 T2 , Class I Class II
กลุ่มสินค้า Surge AC กันฟ้าผ่า - Surge AC Protection
** กรณีต้องการภาษีมูลค่าเพิ่ม ใบเสร็จรับเงิน ในนามบริษัท หจก. ร้านค้า โรงเรียน ราชการ คลิก ต้องการ VAT เท่านั้น
LY1-B 50kA Class I ClassII Three phase AC surge protection device 10/350 limp 12.5kA
LY1-B T1 T2 3P-N-PE T1-T2 Class I-II Surge protective device is mainly used in 3Phase and below power supply system. Applied low voltage standard IEC EN 61643-11 to protect against AC power line system and other equipment from over voltage andinstantaneous over voltage damage. It has advantages of large discharge current, fast respond time and low residual
